The camera can be controlled from a remote location using a variety of remote control units. Also, using the camera in conjunction with the AW-PH300 compact and quiet indoor pan-tilt unit enables a pan-tilt system to be set up for unobtrusive shooting.
.

• Remote control unit - WV-RC700A --- Maximum distance: 300m
• Remote control unit - WV-RC550 - Maximum distance: 100m
• Remote control unit - WV-CB700A - Maximum distance: 50m

.

.

Four modes with preset camera functions can be selected to suit the usage conditions.
.

• Halogen lighting mode
  Suited for indoor shooting such as at wedding receptions or other events.
• Fluorescent lighting mode
  Suited for indoor shooting under fluorescent lighting.
• Outdoor mode
  Outdoor shooting.
• User mode
  Allows detailed camera function settings.

.

Gain, electronic shutter, white balance, corner detail, black stretch, highlight chroma, flesh tone detail, light sensing method, colour bar set-up, negative/positive selection, PC control transfer rate, R/B gain, R/B pedestal, black level, video level light, sensing area selection, genlock, horizontal phase/colour phase, gamma knee correction level, white clip level,horizontal/vertical detail level, chroma/dark detail correction level, matrix masking flare correction, etc.
.

.

A Single Operator Has Full Remote Control over Multiple Shooting Locations. In conventional systems, separate controllers were required to operate the camera/lens and pan-tilt head. Panasonic's newly developed hybrid control.
.

Dedicated AC adapter (fortheAW-PH600) - AW-PS600
.

Tilts over an 85° field at 10°/second and pans over a 300° field at 8°/second. Forward/reverse switching (in horizontal and vertical directions) is also possible, providing greater flexibility.
.

The controller operates the zoom, pan, and tilt, as well as the housing's heater, wiper and defroster functions. The camera can connect to a modem, and operation is possible by remote control via an RC-232C connection.
.

The water-resistant housing (AW-PH600, AW-CH600) provides the protection needed for reliable outdoor camera-mounted shooting in rain, wind and other adverse conditions. This sturdy housing holds units weighing up to 10 kg.
.

The wide control range allows panning over a 300° field, and tilting over a 190° field, with high-speed control of both panning (257second) and tilting (20%econd). The Soft Landing control function provides smooth starts and stops, and exceptionally quiet performance of less than NC30 ensures comfortable operation.
.

Pre-set the zoom, focus and pan-tilt position data, and then retrieve the data for quick, easy operation. Up to 30 presets are possible from a PC.
.

The compact design provides unobtrusive shooting, and you can mount the unit on a counter top or ceiling. Holds up to 4 kg.
.

.

• An der großen Zahl der Zubehör-Komponenten sieht man, daß sich die Entwickler sehr viel Mühe mit einem vollständigen Programm (= Angebot) auf der Basis der Erfahrung der letzten 20 Jahre gemacht hatten. Es gibt 4 verschiedene Kontroll-Einheiten (Bedienpulte) für fast jeden Bedarf.

.

You can pre-set the pan-tilt positions, zoom, focus and aperture, as well as the white balance setting (ATW, A or B) for each position. Up to 10 setting patterns or "snapshots" can be memorised for each camera.

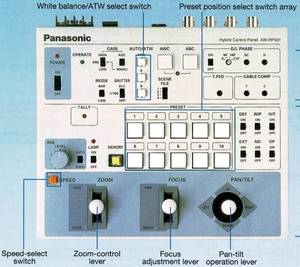

Slight changes in the lever angles adjust the pan, tilt, zoom and focus speeds. Press a single button to switch between high and low speed. The operating direction can also be adjusted, and simple lever operation controls the switching between zoom and focus.

The AW-RP501 features a compact, lightweight box design, with a connection panel that can be directed toward either the front or rear. The control levers for the main functions and the preset selectors are centred and feature an easy-to-use layout.

.

Obwohl die Optiken teilweise mehr kosten als die einzelnen Kamera Bodys, kommen die fast ganz hinten dran, als ob sie keine Rolle spielen. Aus unserer Sicht sind die Optiken das wichtigste Zubehör, denn das muß zu den Steuerungssystemen passen.
.

.

.
